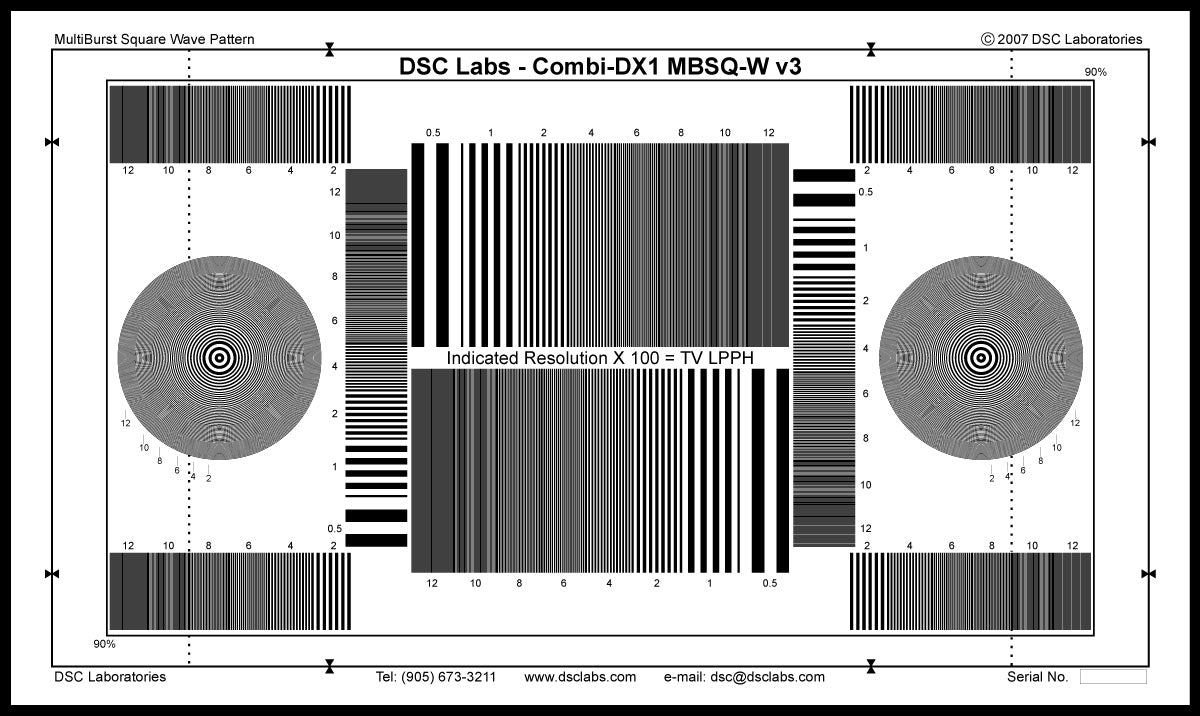

Combi DX1 – MultiBurst Square Wave
Multiburst 16:9/4:3 (Black on White)
- Central horizontal and vertical resolution gratings
- Continuous resolution sweeps from 50 to 1200*, with identifier every 100 TV LPPH
- Spaces every 200 TV LPPH – simplify analysis when using a waveform monitor
- Corner gratings – useful for checking lens performance
- Zone plates – helpful in identifying aliasing
